The definitive solution to structuring document forms within the Microsoft 365 ecosystem is leveraging Content Controls. In this article, I will explain the architectural layers of Microsoft Word Content Controls, break down the functional features of Word Online vs. Word Desktop side-by-side, and analyze advanced properties like XML mapping and protection locks, etc.
Creating Content Controls in Word Online vs Desktop

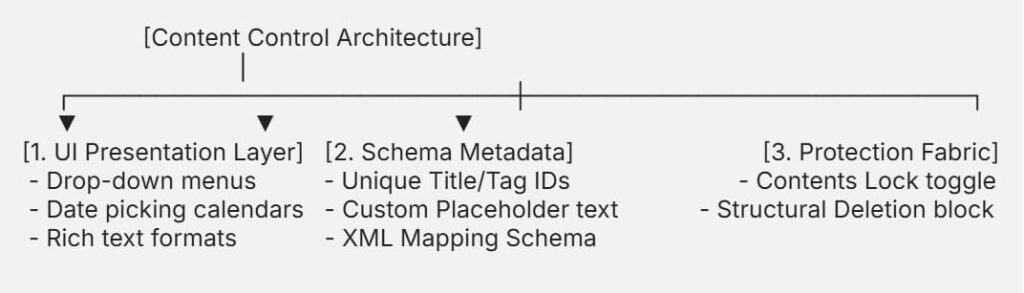

Relational Framework: What Are Content Controls?
To build an automated document strategy with authority, you must first understand the architectural purpose of Content Controls. Introduced by Microsoft to replace legacy form fields and Active X controls, Content Controls provide an isolated, structured user interface element that encapsulates data.
The Presentation Layer
Content Controls transform a standard flat text surface into an interactive user form. When an end-user clicks inside an active control block, the document engine displays a contextual wrapper container—such as revealing a calendar interface for an input date field or populating a scrollable menu grid for an enterprise drop-down selection list.
The Schema Metadata Layer
Every Content Control you deploy carries independent metadata hooks behind the scenes, including an explicit Title string and a specific Tag identifier. These properties allow external automated systems—such as Power Automate cloud flows or custom C# applications—to scan a document, instantly locate a specific control container by its tag name, and read or write data programmatically without parsing raw string lines.
The Protection Fabric
Content Controls provide native data governance toggles directly within their properties pane. You can configure a container to explicitly block users from deleting the control itself while allowing them to type data inside it, or you can activate an absolute content-edit lock to build read-only boilerplate text blocks that adapt dynamically based on upstream database entries.
Technical Feature Comparison Matrix: Word Online vs. Desktop
Understanding where the development boundary sits between the browser canvas and the local native desktop software is critical for designing efficient template creation lifecycles.
| Content Control Capability | Word Desktop Application (Windows / macOS) | Word Online Browser Interface (Microsoft 365 SaaS) | Operational Verdict |
| Developer Tab Accessibility | Fully supported; requires a one-time ribbon configuration toggle. | Not Available. The Developer tab cannot be surfaced in the cloud UI. | Desktop Only |
| Control Insertion (UI) | Comprehensive menu covering Plain Text, Rich Text, Drop-Downs, Dates, etc. | Limited to viewing and entering data into pre-existing controls. | Desktop for Authoring |
| Drop-Down Item Management | Full property panel to add, remove, sort, and assign display values. | No native interface to modify list arrays or schema values. | Desktop Only |
| Locking & Deletion Safeguards | Native toggle checkboxes to enforce strict structural security. | Respects existing desktop locks but cannot create or remove them. | Desktop for Authoring |
| Advanced XML Data Mapping | Fully supported via the XML Mapping Pane or developer extensions. | Completely hidden; processes existing bindings passively behind the scenes. | Desktop Only |
| Cross-Platform End-User Ingestion | Full interactive data entry across all platforms. | Full data entry capabilities for existing plain text, drop-downs, and dates. | Parity for Data Entry |
Structural Deep Dive: The Word Desktop Authoring Studio
Because Word Online is a streamlined, cloud-focused browser application, the dedicated Windows or macOS desktop application remains the absolute engine room for creating document templates.
Unlocking the Developer Ribbon
By default, Microsoft hides the advanced toolsets required to build automated document elements to prevent general users from cluttering their view. To activate the template design environment on a desktop machine, you must navigate a quick initialization sequence:
- Open Word Desktop, right-click any blank space on the top toolbar ribbon, and select Customize the Ribbon.
- In the right-hand options column pane, locate the Developer main tab checkbox listing and toggle it to Checked.
- Click OK to commit the settings. The Developer tab will now appear permanently on your master application menu bar.
The Core Control Portfolio
Once the Developer tab is active, your template design team gains access to a robust array of interactive form elements:
- Plain Text vs. Rich Text Controls: Plain text controls strip away incoming styles, forcing user inputs to strictly adopt the paragraph formatting of the target block. Rich text controls allow users to apply independent bold text, custom font changes, bullet points, or embed nested tables within the container.
- Drop-Down Lists and Combo Boxes: Drop-down lists restrict your remote users to selecting options exclusively from a predefined list array that you configure. Combo boxes offer a flexible middle ground, allowing users to select an option from your list or type in their own custom entry if needed.
- The Date Picker Control: Injects an interactive graphical calendar dropdown that formats dates perfectly according to your enterprise standardization layout (e.g.,
YYYY-MM-DDorMM/DD/YYYY), eliminating manual typing variations.
The Cloud Frontier: Interacting with Controls in Word Online
The web interface approach shifts the platform focus from creating code structures over to consuming and interacting with them efficiently across a distributed workforce.
The Zero-Footprint Form Experience
While you cannot physically click a button inside Word Online to add a new date picker or inject a new custom drop-down element into a blank document, the browser-based cloud platform fully supports the end-user data entry lifecycle.
If an infrastructure designer builds a structured corporate proposal template using Word Desktop and saves that master file into a shared enterprise SharePoint library, your remote staff in Chicago or Miami can open that document straight through Word Online.
Inside the browser window, all preconfigured Content Controls render as interactive elements. Users can click drop-down menus to select choices, select dates from calendar overlays, and type values into plain text blocks. The document engine captures these changes instantly, syncing the data back to the cloud ecosystem in real time.
Preserving Protection Fabrics in the Browser
Word Online carefully respects the security perimeters established on the desktop. If you use the desktop client to lock a text block with a setting like “Content control cannot be deleted,” Word Online prevents web users from breaking that structural boundary.
They can type text into the designated field, but the browser interface safely blocks them from deleting the block or modifying the surrounding layout.
Architectural Data and Template Ingestion Flow

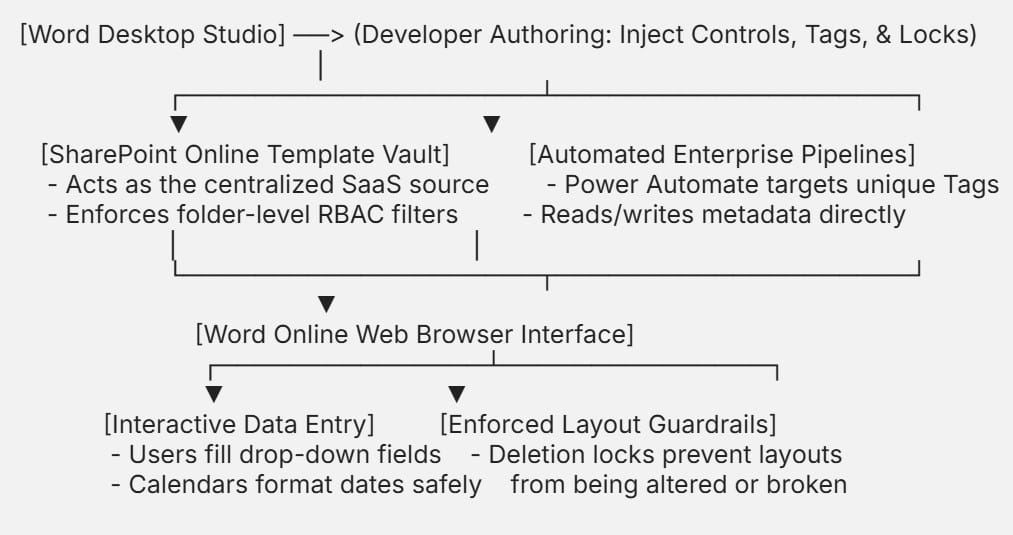

To help your template automation team visualize how data and metadata flow through a distributed document processing pipeline, let’s look at the system architecture diagram below:
As shown above, using the desktop application as your core development tool while leveraging the web browser interface for data entry allows you to scale automated template workflows securely across your entire organization.
Step-by-Step Tutorial: Building a Protected Corporate Template
To build a secure, automated document template from scratch using a disciplined hybrid workflow, follow this structured, step-by-step sequence:
1. Unlock the Developer Workspace Ribbon Inside Your Desktop Application:
Launch your local native Microsoft Word desktop software. Right-click any open space on your main top menu ribbon, select Customize the Ribbon, locate the Developer category checkbox inside the layout configuration panel, check it, and click OK to unlock your advanced design toolkit.
2. Insert Interactive Drop-Down and Calendar Fields Into Your Schema:
Highlight the specific zone in your document where you need to collect data. Click your new Developer tab, locate the Controls grouping, and click the Drop-Down List Content Control icon to inject an interactive selection container straight into your layout.
3. Configure Unique Identification Metadata and Structural Access Locks:
Select your newly inserted control container and click Properties on the Developer ribbon. Assign a clear identifier (such as Title: RegionSelection and Tag: Metadata_Region), click Add to populate your drop-down choice list array, check the box for Content control cannot be deleted, and click OK.
4. Publish the Standardized Master Template to an Enterprise Cloud Vault:
Save your configured document as a standardized Word Template (.dotx) or standard file package. Upload the file to your centralized corporate SharePoint Online library or Microsoft Teams workspace, allowing your remote engineering teams to access and fill out the form using Word Online.
Summary
Building a reliable, automated corporate document workflow requires a clear understanding of your platform’s capabilities.
- Use Microsoft Word Desktop as your core development workspace to access the Developer ribbon, build interactive drop-down menus, configure custom placeholder text, map underlying XML data schemas, and apply strict content deletion locks.
- Leverage Microsoft Word Online as your scalable, zero-footprint data entry gateway, allowing your remote workforce to fill out forms, interact with drop-down menus, and input data inside safe, pre-configured layout guardrails.
